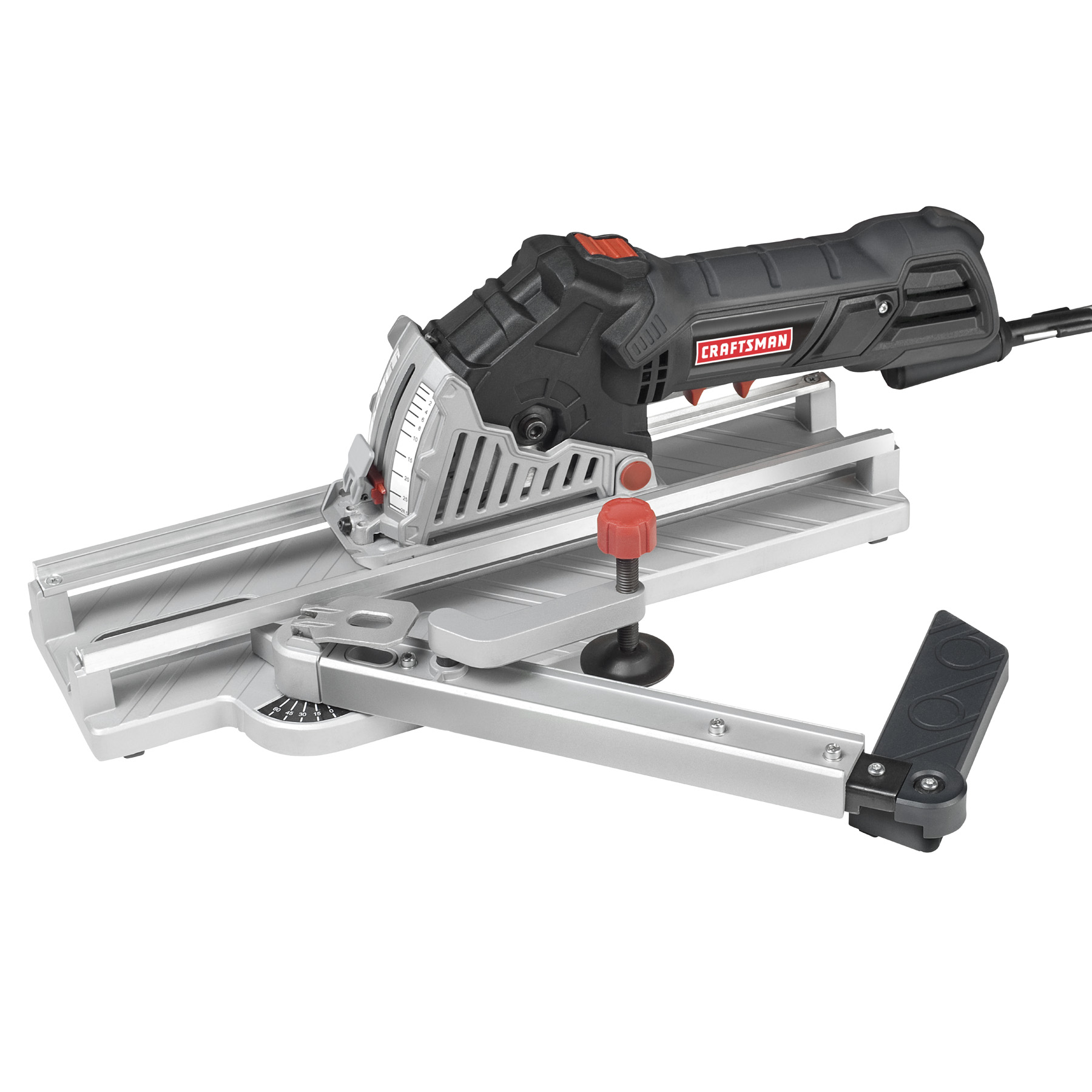

Craftsman  3-1/2” TRAK-CUT ™ Circular Saw with Miter Guide Base

  Item#  00933166000 | Model#  DL2401 UL
Close

Create a Review



 Rating 3.5 | 44 Reviews | Write a review
Reg Price: $129.99
$45.88

Clearance. Intermediate markdowns may have been taken.

While supplies last

Online Only Price

I Own This Add to List


Specifications & Dimensions

Dimensions and Weight:
Item Weight (lbs.): 11.13
Overall Dimensions: 17.9 x 5.7 x 8.6"
Product Overview:
Adjustable Speed: No
Assembly Required: Assembly Required
General Warranty: 1 Year
Package Contents: 1 x 3-1/2 in. (89mm) TCT saw blade 24 teeth 1 x 3-1/2 in. (89mm) HSS saw blade 80 teeth 1 x 3-1/2 in. (89mm) Diamond blade
RPM: 5000
Saw Type: Multipurpose circular saw
Torque in-lbs: N/A
Voltage: 120V
Color:
Color/Finish: Grey/red
Materials & Finishes:
Guard Material: Die cast aluminum
Protective Finish: No
Safety Enhancements:
Double Insulation: Yes
Handles:
Handle Type: Body Grip
Number of Handles: 1
Cord:
Cord Length (ft.): 6.56
Cord Management: Manual Wrap
Cord Type: 18 gauge
Blade:
Blade Size: 3-3/8 in.
Motor-Engine:
Amps: 5
Clutch Torque: Non-adjustable
Gear Reduction: Single reduction
Gearing Type: Helical
Noise Control: No
Speed Capability: Single
Convenience:
Dust Blower: Yes
Tasklight: No
Blade, Quality:
Cuts Per Minute: 5000
General Features:
Anti Splinter: No
Arbor Size: 3/8 in.
Arbor Type: Standard
Shoe Lock Type: Screw
Shoe Type: Pivot
Cutting Tool:
Adjustable Cutting Depth: Yes
Blade Bevel Range: N/A
Blade Stroke: N/A
Cut Depth At 90 Degrees: 1-1/8 in.
Guide Included: Yes
Maximum Cut Depth: 1-1/8 in.
Spindle Lock: Yes
Case:
Case Included: Yes
Materials:
Housing Material: Glass Filled Nylon

Overview

Ratings & Reviews

Special

Projects

Product Description

This 3 1/2 Trak Cut Circular Saw Cuts Where Others Cannot

Whether you’re ripping a room full of paneling, are trimming tile for a bathroom, or are busy finishing up a deck by trimming overhang, this Craftsman 3 1/2 trak cut circular saw delivers powerful cutting action and quick results. Featuring a unique body design, and 3 ½” blade size, it’s more agile than larger circular saws, while its versatility takes care of jobs around the house, in the shop and at the jobsite.

Perfect for plunge cuts, the 3 1/2 trak cut circular saw’s accurate depth adjustment drops 1/8” at a time, all the way down to 1 1/8inch, and the ergonomic handle delivers control with every cut. Not just perfect for cutting holes in counter tops and trimming flooring, it comes with a specially designed miter base and three different blades that ensure whether you’re cutting ceramics, laminate, composites or wood, you get a clean, accurate cut with every pass. A solid addition to shop, garage and job box, toss this specially designed circular in your kit, and get the versatility you need to get the job done right.

  • Craftsman 3 1/2 trak cut circular saw includes: Saw, 3 blades, edge guide, miter base, dust extraction system and hex keys
  • Built-in spindle lock makes blade changes fast
  • Powerful 5 amp motor delivers consistent speed and torque
  • 1 1/8” depth of cut is the deepest on the market
  • Performs cross cuts, rip cuts, plunge cuts as well as metal cuts, tile cuts and grout removal
  • Quick set up and release depth of cut setting
  • Ergonomic guard release lever mechanism
  • Power-on neon light
  • Includes 3 blades (TCT, HSS, and Diamond)
  • Efficient dust extraction system included
  • Convenient replaceable carbon brush access
  • Precision cutting accuracy on flooring and projects
  • Live tool light lets you know when tool is plugged in
  • Easy and quick blade changes
  • Easy for user to change worn carbon brushes
  • Portable and convenient

This product is:
  • Available for Gift Wrap

Added on September 06, 2012



Overall, others give this:

44 Reviews Write a review
29 Reviewers (66.0%) would recommend this to a friend.
Overall Rating Breakdown:
5stars
4stars
3stars
2stars
1stars

Reviewers may have received a benefit, like a sweepstakes entry or rewards program points, in exchange for writing a review.
Those benefits were not conditioned on the positive or negative content of the review.

Most Helpful Reviews

Praise11 found this helpful
JohnDoesIt
Dec 9 , 2012
What a great little saw!
As I read some of the reviews, they basically discouraged me to buy the saw as I had the previous CM model which was a disappointment. Anyway I thought the new version the CM guys developed should be better. To be honest I had to get use to the on/off switch at first but just finished 700 square feet of flooring......... I am more then happy with the results and still did not find the dangerous part, I had no kickback at all while I plunged over a 100 times. What IS disappointing me it seems some people write reviews without ever using the tool at all, really disappointing..... Coz, I never really write reviews I had to do it this time!
Criticism21 found this helpful
RonnyRay
Aug 13 , 2013
No Parts Available
Saw worked great, unfortunately, no spare parts available period ! After the Sears Hardware representative spent 1 hour-45 mintes on the phone in-store trying to order my spare set of blades,this includes getting hung up on twice by Sears worthless customer service at their 1-800 number, finally to be informed they were back ordered, and could not even tell me an approx. date they may get them in. I came home, spent another hour on hold, finally gave up. read othe reviews, others that had purchased this saw had the same issue, NO BLADES AVAILABLE PERIOD ! Returned the saw today, got my money back, went an purchases the Rockwell Versacut at ******. Bought 2- extra sets of blades at store. Saleman advised they always have them in stock. I am a 35 year customer with Sears, their customer service sucks masively. VERY disappointed all the way around. Really thought this would be a fantastic product, boy was I wrong.


lopedevega

Tavares, FL

Aug 12 , 2014
via sears.com
Overall
Disappointed

This saw had stopped working after ~3 minutes of cutting wood.


Helpful
(1)
Not Helpful
(0)
Flag this Review

Go2Guy

Bowling Green, KY

Aug 8 , 2014
via sears.com
Overall
Great for Light Quick Work! Sure like it!

Lightweight and easy to use!!!

I would recommend this product to a friend.

Helpful
(0)
Not Helpful
(0)
Flag this Review

in2cool

Cypress, CA

Aug 5 , 2014
via sears.com
Overall
Seems decent

A decent product for casual user, not sure that you can take this for professional use considering that blade is not available. But, if you can find one this is a good one to have.

I would recommend this product to a friend.

Helpful
(0)
Not Helpful
(0)
Flag this Review
Aug 4 , 2014
via sears.com
Overall
excellent tool

great tool for specific jobs

I would recommend this product to a friend.

Helpful
(0)
Not Helpful
(0)
Flag this Review

smallfeet1

Bruceton, TN

Aug 1 , 2014
via sears.com
Overall
miter saw with base

Wow nice price 75 percent off you can't beat that price and all it comes with. My husband loved it and even I can use it, easy to use and lightweight but durable too.

I would recommend this product to a friend.

Helpful
(0)
Not Helpful
(0)
Flag this Review

bushsean

Charles Town, WV

Jul 16 , 2014
via mobile
Overall
Above average saw

Overall this is a good little saw. To be rate higher I would have liked it if it could 1. Cut a 2x4 2. Had a way to hold the guard up (I used it to cut the round arc on a fence. I used duct tape to hold guard up so I could see blade and follow the line). 3. Larger or differently placed air vent. At one point my hand covered vent and boy let me tell you it got extremely hot. In all fairness though I have not had a chance to cut tile or metal yet or use the miter trak. Overall I rate it above average to good.

I would recommend this product to a friend.

Helpful
(4)
Not Helpful
(0)
Flag this Review
Jul 11 , 2014
via sears.com
Overall
Great saw

I use the saw for plunge cutting. It has an accurate depth setting.

I would recommend this product to a friend.

Helpful
(1)
Not Helpful
(0)
Flag this Review

RhondaK18

Menomonie, WI

Jul 8 , 2014
via sears.com
Overall
Dissatisfied!

Within the first blade change, the cheap screw stripped. Cut a few trim pieces with the blade and it went dull! :-( It's made of plastic, which is probably why it's so cheap!


Helpful
(2)
Not Helpful
(1)
Flag this Review

Fatts338

Spencerville, MD

Jul 4 , 2014
via sears.com
Overall
It a great tool to have !

I used this the firsts day I brought it. I had to title my kitchen floor and cut base board and trim was great !!

I would recommend this product to a friend.

Helpful
(3)
Not Helpful
(0)
Flag this Review

MrToolGuy

Associate

Alpena, MI

Jul 3 , 2014
via sears.com
Overall
Nice saw

I was surprised by the weight of it. It's not something I would use everyday, but I'll use it enough that it was worth buying. I've noticed some people saying that you can't get the 3 1/2" blades. I haven't had a chance to visit Sears to see if that's accurate. However, I assume you could probably use the 3 3/8" blades that go on the Nextec 12v Cordless Circular Saw. I don't know that for a fact, but I don't know why they couldn't be used as an alternative either.

I would recommend this product to a friend.

Helpful
(3)
Not Helpful
(0)
Flag this Review
